SpectraSensors is a leading global provider of laser-based process instrumentation including moisture, CO2, and H2S analyzers.
Gulf Coast TMC is the SpectraSensors authorized factory representive for the Natural Gas market in Louisiana.
Overview

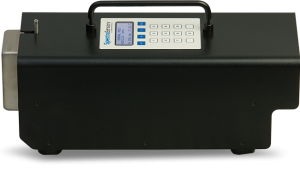

- SpectraSensors SS1000 Portable is a light weight, easy to handle, battery-powered H2O analyzer, used to verify measurements and for spot-checking when other methods provide questionable results.
- The SS1000 reveals poorly performing sensors, pinpoints high moisture and can be used as a standard for measurement validation.
Rapid Response Time
- The SS1000 allows for fast, simple operation.
- The analyzer’s laser and detector take measurements 4 times per second and average the results.
- These real-time measurements are not hampered by wet-up (absorption) or dry-down (desorption) as with surfaced-based sensors.
Overview

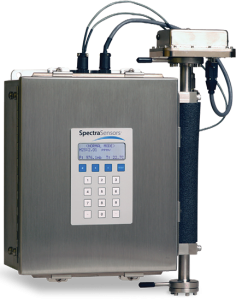

- SpectraSensors SS500 Analyzer is an economical analyzer that utilizes the same state-of-the-art technology as SpectraSensors higher detection analyzers, assuring the user of high reliability and repeatability.
Rapid Response Time
- At four measurements per second, the analyzer can measure the fastest changes in the pipeline. Adjustable, real-time results display every 0.25-2 seconds.
Overview

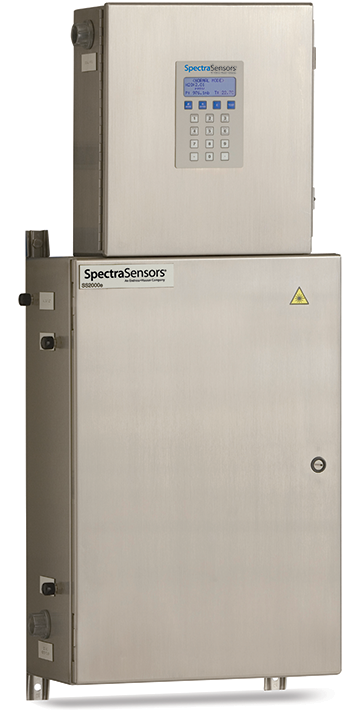

SpectraSensors SS500e Analyzer is an economical analyzer that utilizes the same state-of-the-art technology as SpectraSensors higher detection analyzers, assuring the user of high reliability and repeatability.
Rapid Response Time
- At four measurements per second, the analyzer can measure the fastest changes in the pipeline. Adjustable, real-time results display every 0.25-2 seconds.
No Consumables
- Because the analyzer’s sensor never touches the gas stream, it does not get contaminated.
- The factory set calibration lasts for the life of the analyzer and reconditioning is never required.
Overview

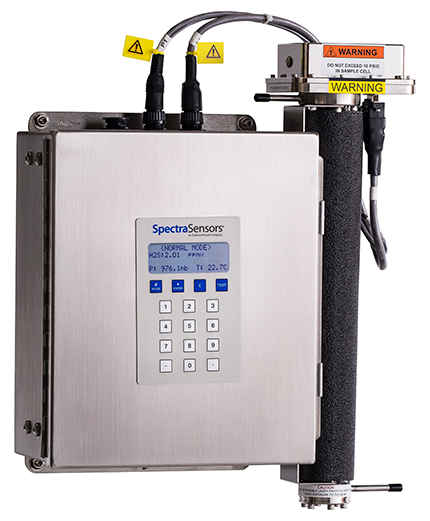

SpectraSensors SS2000 Single Channel Analyzer for H2O or CO2 is extremely reliable and tailored for the needs of the natural gas industry.
Rapid Response Time
- The SS2000 analyzer takes four measurements per second with a laser and detector and immediately averages the results.
Overview

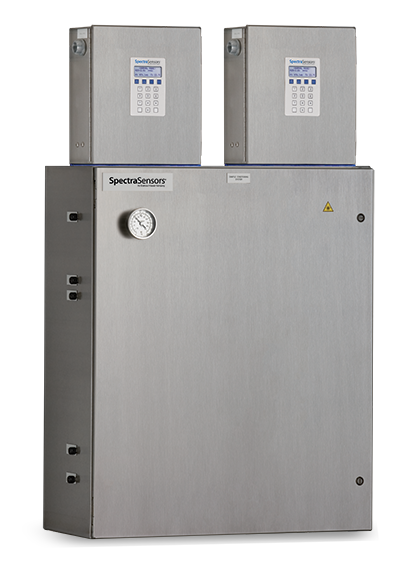

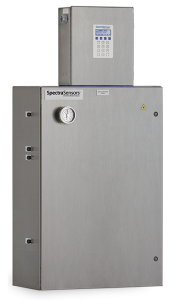

- SpectraSensors SS2100 Gas Analyzers are exceptionally reliable for measuring trace gas components using Tunable Laser Diode (TDL) technology.
- TDL absorption spectroscopy is a high-resolution infrared technique that enables the measurement of specific gases with precision while avoiding interferences that are common with traditional infrared analyzers.
- The SS2100 is certified for CSA Class I Division 2.
Simple Operation
- The operation of the analyzer is very straightforward. Most technical personnel can learn to operate the system in a very brief time.
- At the same time, technical support capability is a crucial element of the product design.
- There are several health monitoring parameters and remote access is available using AMS100™ software or directly through the touch sensitive keypad.
Overview
- SpectraSensors SS2000 Single Channel Analyzer for H2O or CO2 is extremely reliable and tailored for the needs of the natural gas industry.
Rapid Response Time
- The SS2000 analyzer takes four measurements per second with a laser and detector and immediately averages the results.
Reliable
- Independent studies have proven that the SS2000 results are highly correlated with those of chilled mirrors.
- However, chilled mirrors require skilled experts to operate and the results are highly scattered (large standard deviation).
- Uncertain measurements can be extremely costly. Additional processing of dehydration costs, upset conditions, shut-ins and inconsistent process results may be caused by sensors that do not perform properly.
- The SS2000 is the first to offer truly reliable measurement and simple operation.
Overview
- SpectraSensors SS3000 Dual Channel Gas Analyzer is capable of measuring moisture and carbon dioxide in this cost effective measurement system, which enhances savings by incorporating two sensors in one.
Rapid Response Time
- The SS3000 analyzer takes four measurements per second with a laser and detector and immediately averages the results.
- Real-time measurements are not hampered by wet-up or dry-down times as with surfaced-based sensors.
Overview
- SpectraSensors SS2100 Gas Analyzers are exceptionally reliable for measuring trace gas components using Tunable Laser Diode (TDL) technology.
- TDL absorption spectroscopy is a high-resolution infrared technique that enables the measurement of specific gases with precision while avoiding interferences that are common with traditional infrared analyzers.
- The SS2100 is certified for CSA Class I Division 2.
Simple Operation
- The operation of the analyzer is very straightforward. Most technical personnel can learn to operate the system in a very brief time.
- At the same time, technical support capability is a crucial element of the product design.
- There are several health monitoring parameters and remote access is available using AMS100™ software or directly through the touch sensitive keypad.
Overview

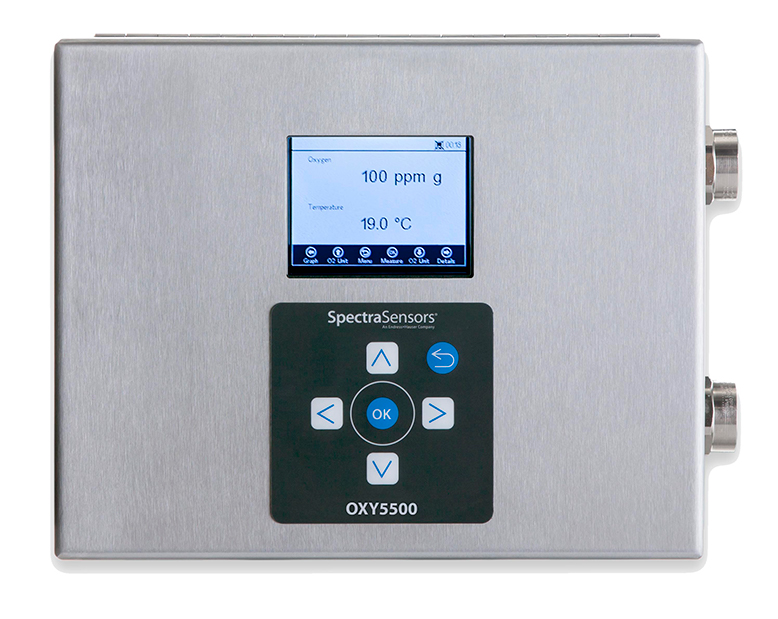

- SpectraSensors OXY5500 Oxygen Analyzer is a compact, stand-alone one-channel meter with an LCD display and bult-in data logger.
- The sensor probe is inserted into the process stream and is connected to the controller by an optical fiber.
- Full Sample Conditioning Systems are available with the OXY5500, as well as software for PC interface.
Low Maintenance
- The analyzer uses an optical method that detects oxygen using a probe that is inserted into the gas stream. The probe can be easily cleaned and has a lifetime measured in years.
- Calibration of the analyzer is a simple procedure that can be performed in minutes using a binary standard with oxygen in nitrogen.
Overview
- SpectraSensors OXY5500 Oxygen Analyzer is a compact, stand-alone one-channel meter with an LCD display and bult-in data logger.
- The sensor probe is inserted into the process stream and is connected to the controller by an optical fiber.
- Full Sample Conditioning Systems are available with the OXY5500, as well as software for PC interface.
Low Maintenance
- The analyzer uses an optical method that detects oxygen using a probe that is inserted into the gas stream. The probe can be easily cleaned and has a lifetime measured in years.
- Calibration of the analyzer is a simple procedure that can be performed in minutes using a binary standard with oxygen in nitrogen.
